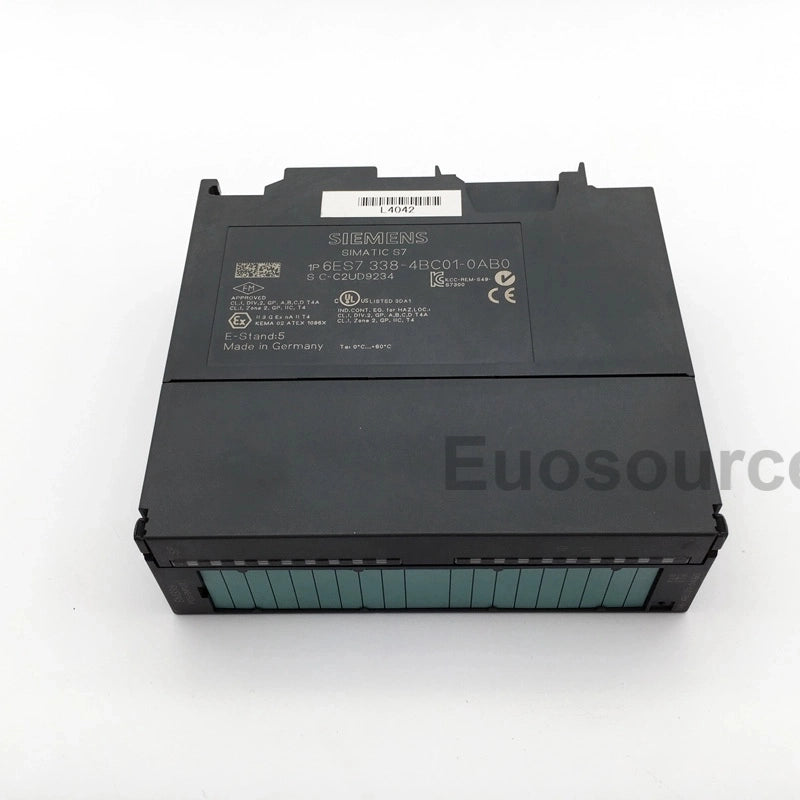

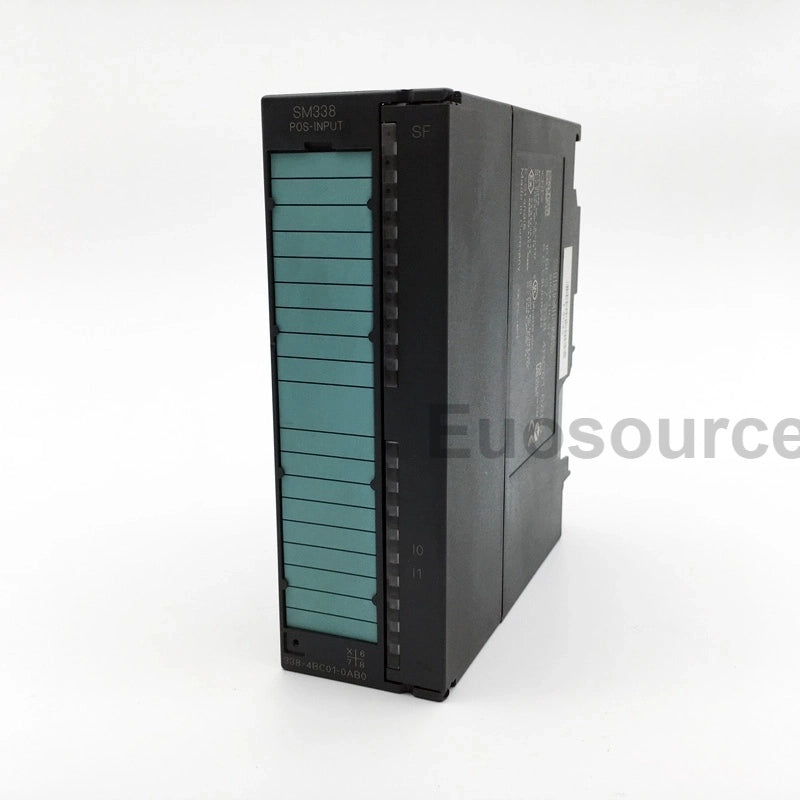

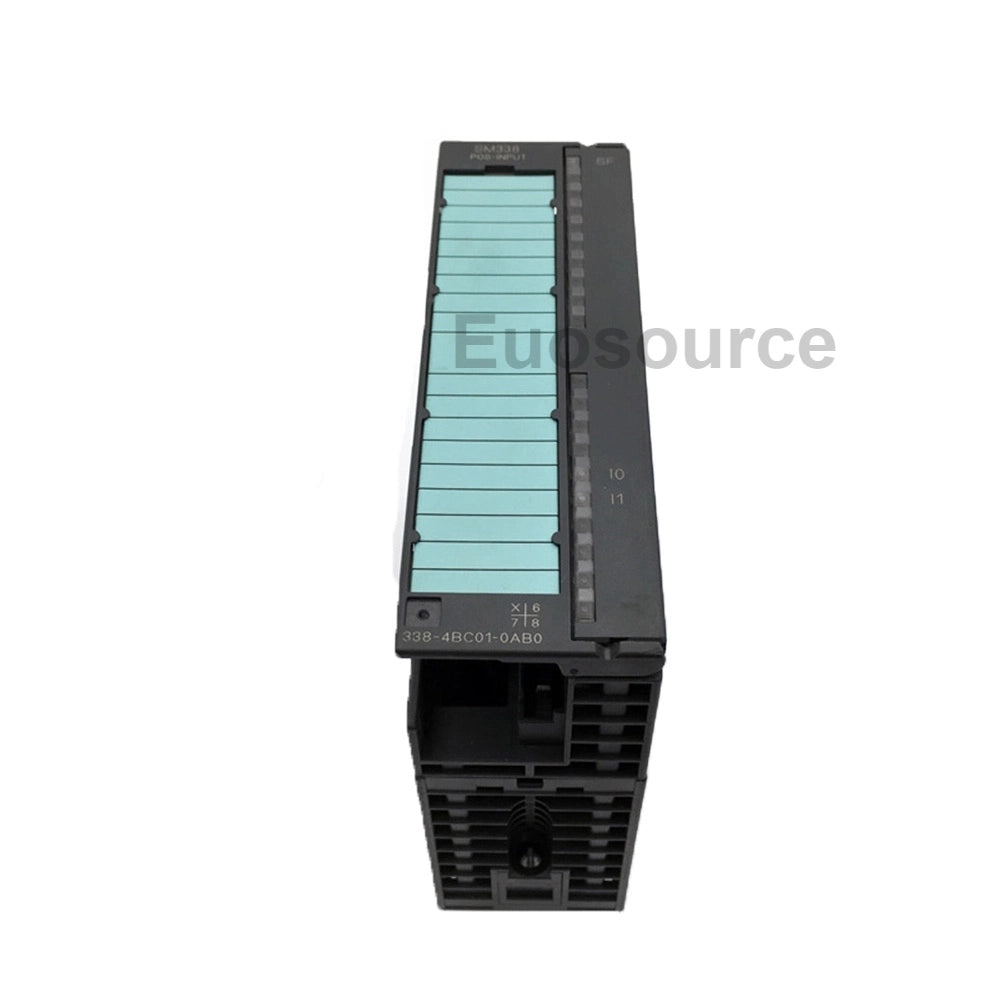

6ES7338-4BC01-0AB0 Siemens SIMATIC S7-300 SM 338 POS Input Module

Description

  • Model: 6ES7338-4BC01-0AB0

  • Brand: SIEMENS

  • Category: SIMATIC S7-300 SM 338 POS Input Module (Position Encoder Interface / Communication Module)

  • Feature: Interfaces up to 3 SSI absolute encoders simultaneously, enabling high-precision positioning data acquisition ; Provides 2 FREEZE inputs for synchronous position capture at defined events ; Supports multiple SSI baud rates (125 kHz, 250 kHz, 500 kHz, 1 MHz) with selectable cable lengths up to 320m ; Features diagnostic alarms and optional isochronous mode for synchronized multi-channel reading ; Conforms to the SIMATIC S7-300 form factor with 40mm width, requiring a 20-pin front connector


6ES7338-4BC01-0AB0 Siemens SIMATIC S7-300 SM 338 POS Input Module

Product form

Next day delivery

$315.00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Jul 10, 2026 23:59:00 -0700
    • Free shipping on all orders above 50,00
    • No hassle returns, 30 days return
    Product Specifications
    BrandSiemens
    Product Model6ES7338-4BC01-0AB0
    Module SeriesSIMATIC S7-300
    Voltage24V
    Current900 mA
    Power3W
    Power Specifications24V DC
    CountryGermany

    Description

    • Model: 6ES7338-4BC01-0AB0

    • Brand: SIEMENS

    • Category: SIMATIC S7-300 SM 338 POS Input Module (Position Encoder Interface / Communication Module)

    • Feature: Interfaces up to 3 SSI absolute encoders simultaneously, enabling high-precision positioning data acquisition ; Provides 2 FREEZE inputs for synchronous position capture at defined events ; Supports multiple SSI baud rates (125 kHz, 250 kHz, 500 kHz, 1 MHz) with selectable cable lengths up to 320m ; Features diagnostic alarms and optional isochronous mode for synchronized multi-channel reading ; Conforms to the SIMATIC S7-300 form factor with 40mm width, requiring a 20-pin front connector
